Mazda CX-9 Owners Manual: Seat Ventilation

Mazda CX-9 Owners Manual / Essential Safety Equipment / Seat Warmer/Seat Ventilation/Heated Steering Wheel / Seat Ventilation

The seat ventilation uses the fans installed on the seats to draw air around the seat surface and ventilate them. The ignition must be switched ON.

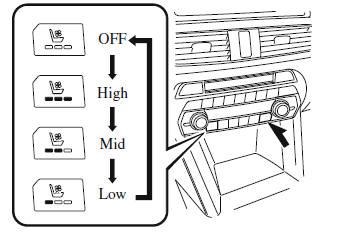

Press the seat ventilation switch while the ignition is switched ON to operate the seat ventilation. The indicator lights turn on to indicate that the seat ventilation is operating. The mode changes as follows each time the seat ventilation switch is pressed.

Seat Warmer/Seat Ventilation/Heated Steering Wheel

CAUTION

Do not use organic solvents to clean the seat. It may damage the seat surface and the seat ventilation parts.
Do not place heavy objects with sharp projections on the seat, or insert needles or pins into it.

NOTE

Use the seat ventilation when the engine is running. Leaving the seat ventilation on for long periods with the engine not running could cause the battery power to be depleted.
(Vehicles with front seat warmer) The seat ventilation cannot be used at the same time as the front seat warmer.

Seat Warmer

Heated Steering Wheel
