Mazda CX-9 Owners Manual: Specifications

Mazda CX-9 Owners Manual / Specifications

Identification Numbers

Vehicle Information Labels

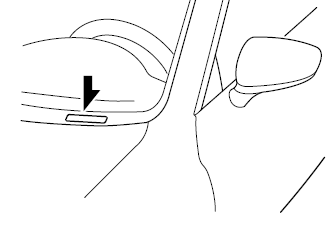

Vehicle Identification Number

The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard. This plate can easily be seen through the windshield.

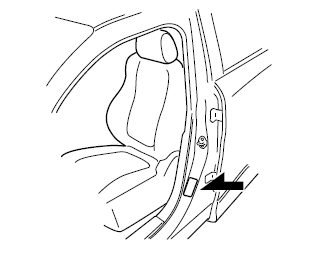

Motor Vehicle Safety Standard Label (U.S.A. and Canada)

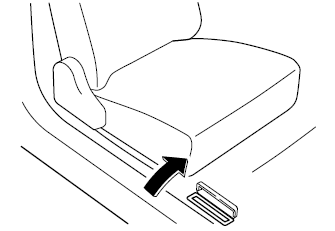

Chassis Number

Open the cover shown in the figure to check the chassis number.

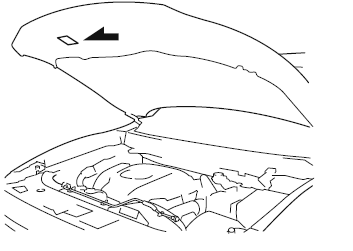

Vehicle Emission Control Information Label (U.S.A. and Canada)

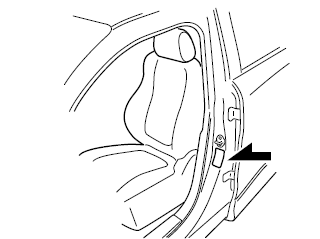

Tire Pressure Label

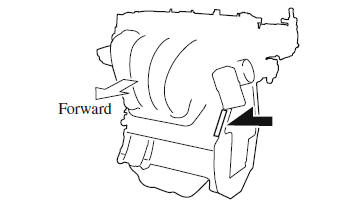

Engine Number

Specifications

Specifications

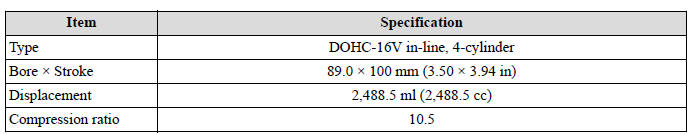

Engine

Specifications

Electrical System

Specifications

*1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer for details.

CAUTION When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.

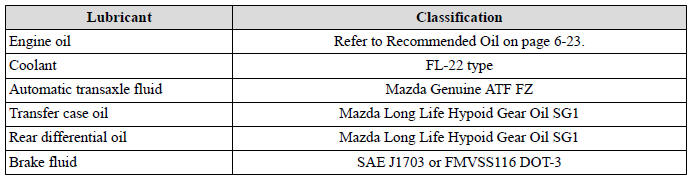

Lubricant Quality

Specifications

NOTE Refer to Introduction for owner's responsibility in protecting your investment.

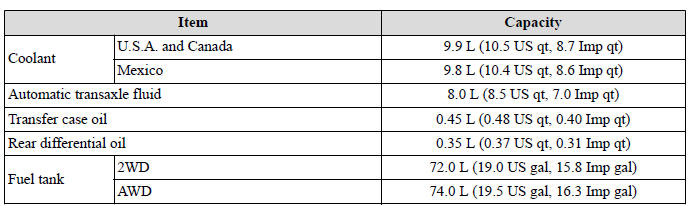

Capacities

(Approximate Quantities)

Specifications

Specifications

Check oil and fluid levels with dipsticks or reservoir gauges.

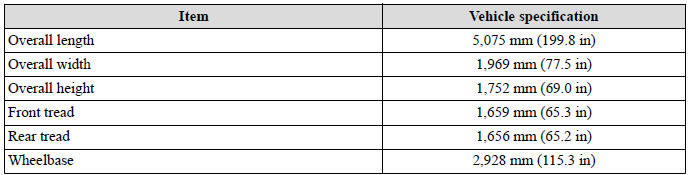

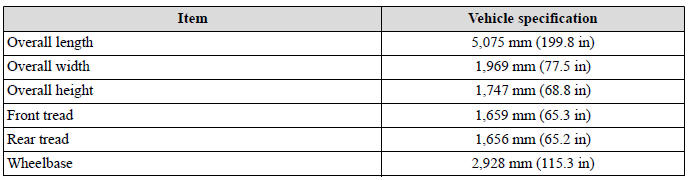

Dimensions

U.S.A. and Canada

Specifications

Mexico

Specifications

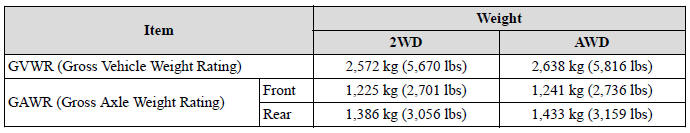

Weights

U.S.A. and Canada

Specifications

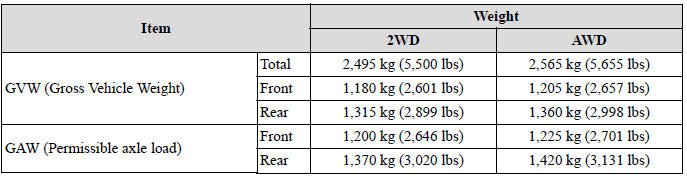

Mexico

Air Conditioner

The type of refrigerant used is indicated on a label attached to the inside of the engine compartment.

Check the label before recharging the refrigerant.

Specifications

Light Bulbs

Exterior light

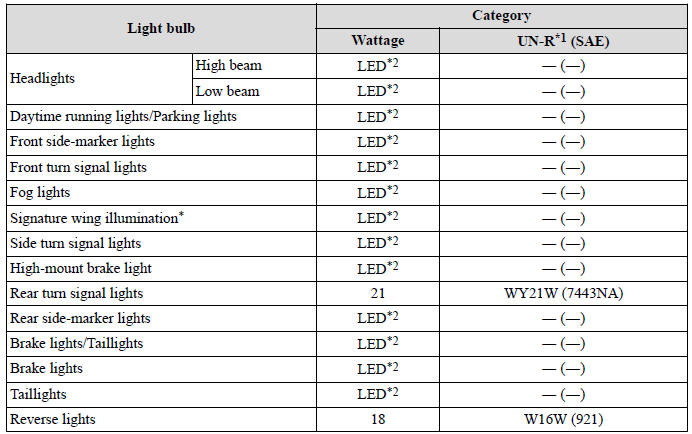

With Adaptive Front Lighting System (AFS)

Specifications

Specifications

*1 UN-R stands for United Nations Regulation.
*2 LED is the abbreviation for Light Emitting Diode.

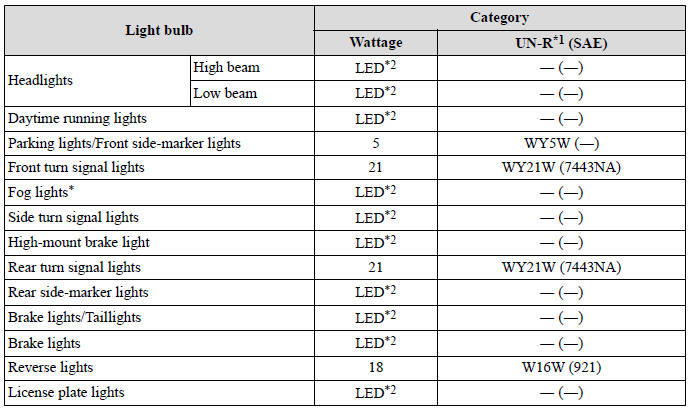

Without Adaptive Front Lighting System (AFS)

Specifications

*1 UN-R stands for United Nations Regulation.
*2 LED is the abbreviation for Light Emitting Diode.

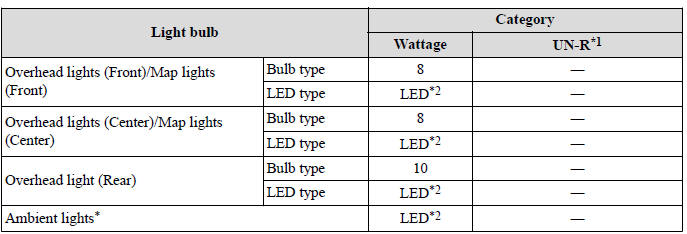

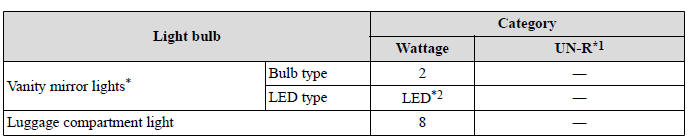

Interior light

Specifications

Specifications

*1 UN-R stands for United Nations Regulation.
*2 LED is the abbreviation for Light Emitting Diode.

Tires

NOTE The tires have been optimally matched with the chassis of your vehicle.

When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.

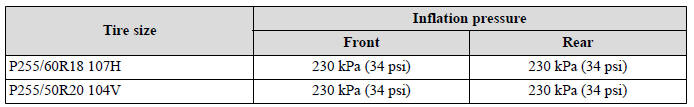

Standard tire

(U.S.A. and Canada)

Specifications

(Mexico)

Specifications

Temporary spare tire

(U.S.A. and Canada)

Specifications

(Mexico)

Specifications

Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.

108―147 N*m (12―14 kgf*m, 80―108 ft*lbf)

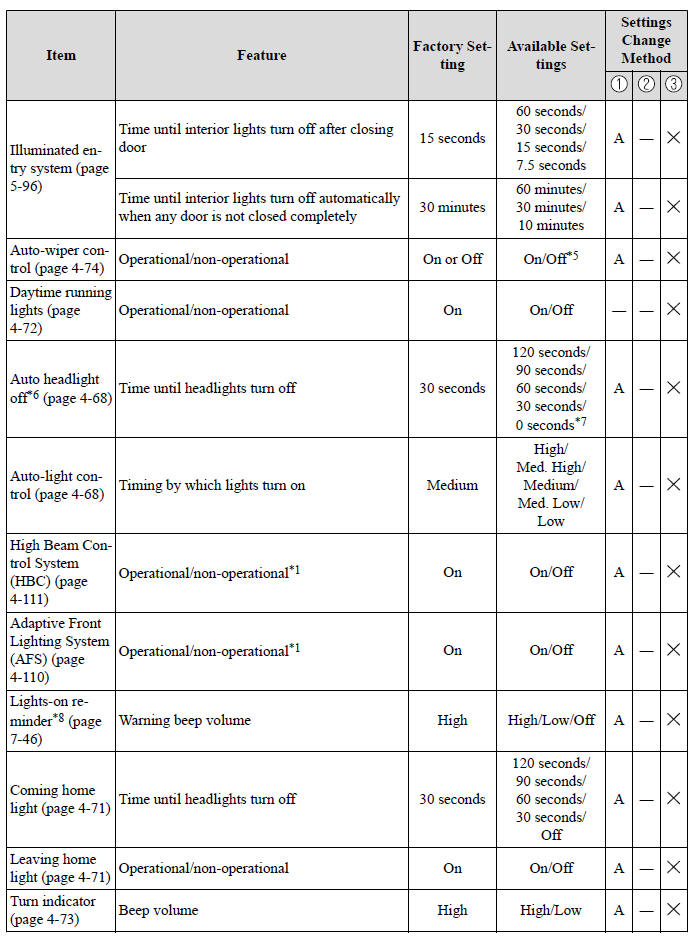

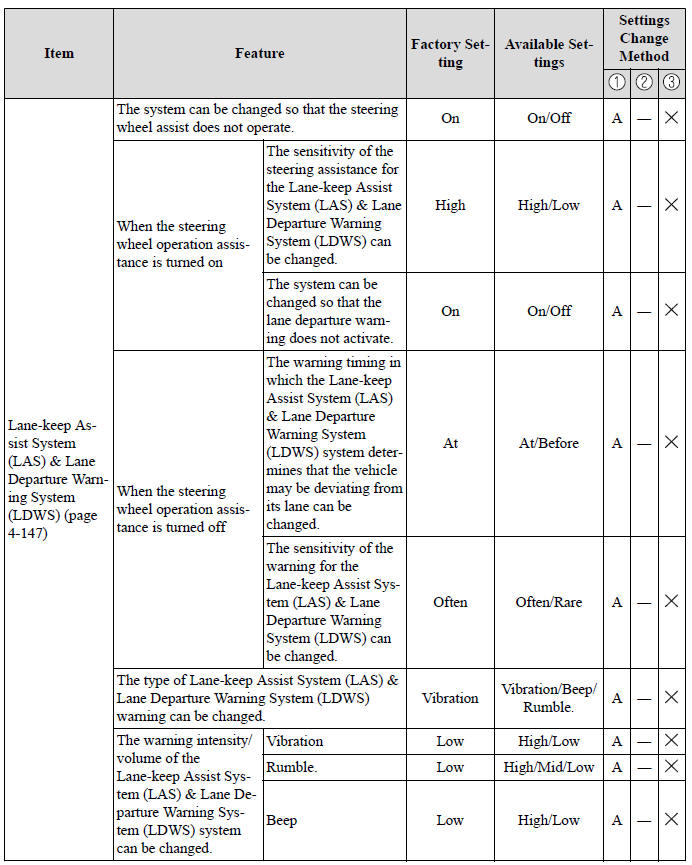

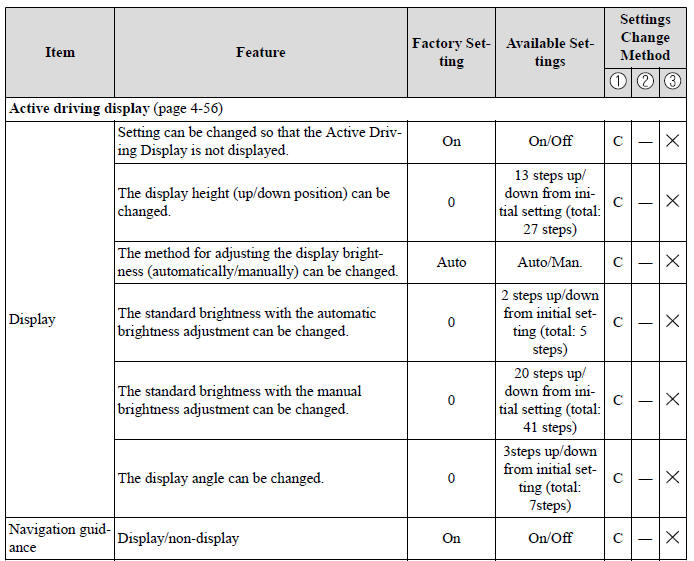

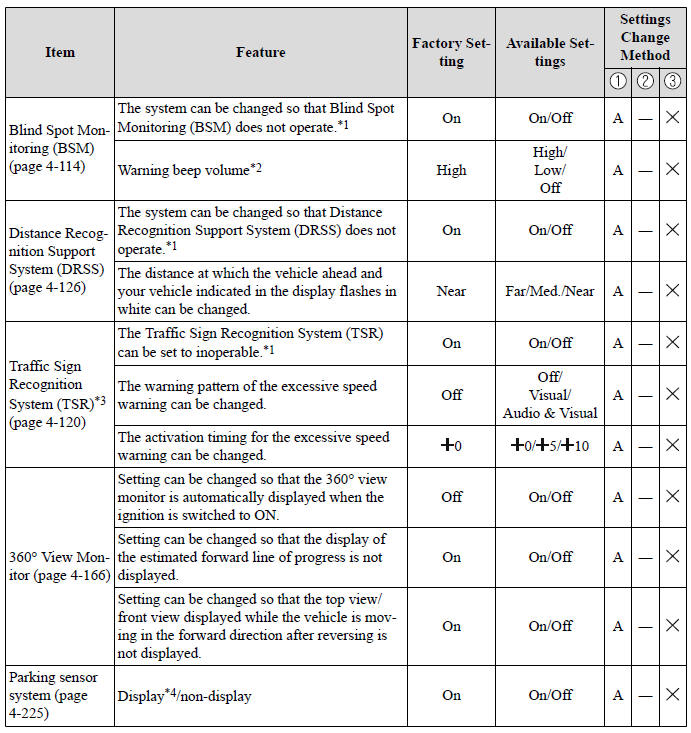

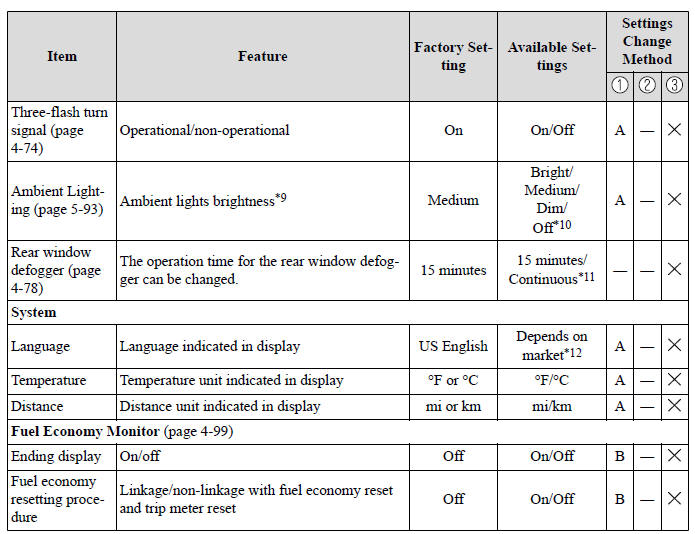

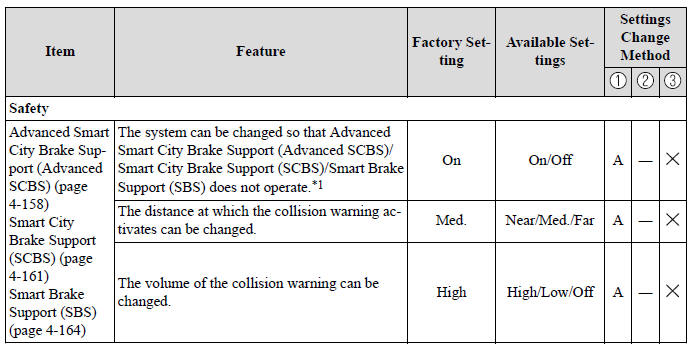

Personalization Features

The following personalization features can be set or changed by the customer or an Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.

Additionally, some of the personalization features can be changed by the customer depending on the feature.

Personalization features and settings which can be changed differ depending on the market and specification.

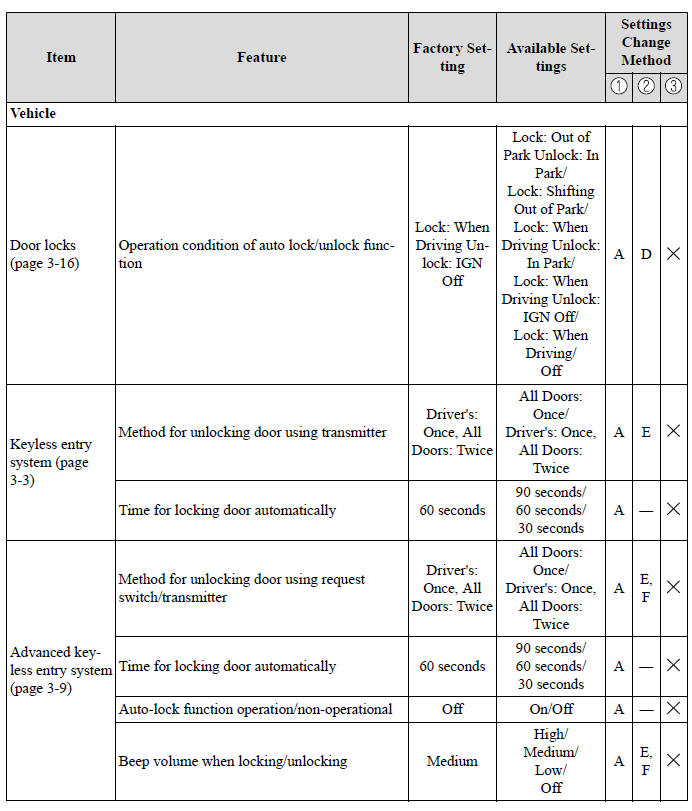

Settings Change Method

  1. Settings can be changed by operating the center display screen.
    A: Refer to Settings.
    B: Refer to Fuel Economy Monitor.
    C: Refer to Active Driving Display.
  2. Settings can be changed by operating the vehicle switches.
    D: Refer to Auto Lock/Unlock Function.
    E: Refer to Transmitter.
    F: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function).
  3. Settings can be changed by an Authorized Mazda Dealer.

Specifications

Specifications

Specifications

Specifications

Specifications

Specifications

Specifications

*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends that these systems remain On.

*2 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.

*3 This system functions only when the navigation system is functioning.

*4 When the ultrasonic sensors detect an obstruction, the contents indicated on the center display switches to the 360ºView Monitor. (Vehicles with 360ºView Monitor)

*5 If the auto-wiper control is set to Off, the wiper lever position is set to intermittent operation.

*6 If the setting is changed to Off, the following operation is performed according to the headlight switch position:

  • At position: Headlights turn off immediately after the ignition is switched off.
  • At any position other than : Headlights on/off conditions vary according to the headlight switch position.

*7 When set to 0 seconds, the lights-on reminder is operable.

*8 The lights-on reminder settings can be changed at anytime, however, the lights-on reminder only operates when the auto headlight function is set to Off.

*9 Change the ambient light illumination level with the parking lights or headlights turned on.

*10 When set to OFF, the ambient lights remain turned off regardless of whether or not the parking lights or headlights are on or off. However, they will turn on or off in conjunction with the illuminated entry system.

*11 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of the rear window defogger has been changed to Continuous.

*12 Available only in display from the center display.



    Vehicle Loading
