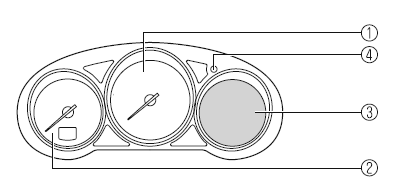

Mazda CX-9 Owners Manual: Instrument Cluster (Type B)

  1. Speedometer
  2. Tachometer
  3. Multi-information Display (Type B)
  4. Dashboard Illumination

Speedometer

The speedometer indicates the speed of the vehicle.

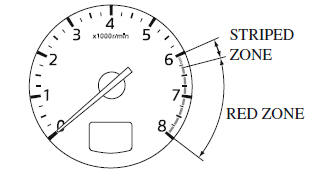

Tachometer

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

CAUTION Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

Instrument Cluster and Display

NOTE When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

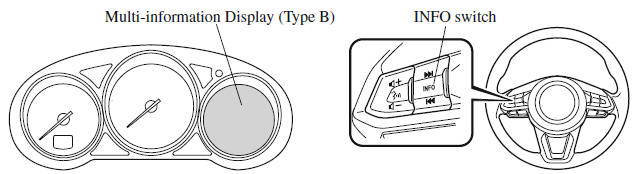

Multi-information Display (Type B)

Instrument Cluster and Display

The multi-information display indicates the following information.

  • Odometer
  • Trip meter
  • Engine coolant temperature gauge
  • Fuel gauge
  • Outside temperature
  • Distance-to-empty
  • Average fuel economy
  • Current fuel economy
  • Maintenance Monitor
  • Blind Spot Monitoring (BSM) Display
  • Distance Recognition Support System (DRSS) Display
  • Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) System Display
  • Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display
  • Cruise Control Display
  • Compass Display
  • Warning message

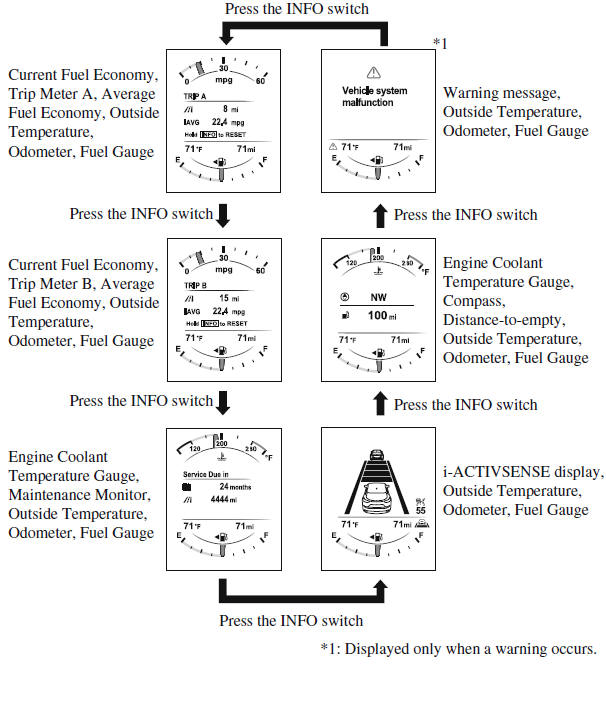

The screen content changes each time the INFO switch is pressed.

Instrument Cluster and Display

Odometer, Trip Meter and Trip Meter Selector

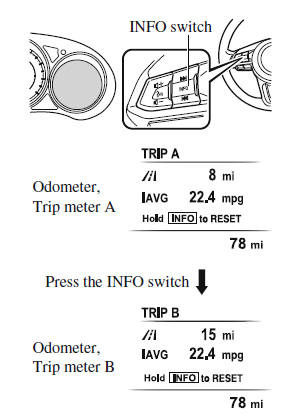

The odometer is constantly displayed on the screen when the ignition is switched ON, and the TRIP A or TRIP B screen can be displayed by operating the INFO switch.

Instrument Cluster and Display

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The driving distance for a specified interval is indicated. Two types (TRIP A, TRIP B) of interval distance and the average fuel economy for each can be measured.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter and average fuel economy can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode.

NOTE

  • Only the trip meters record tenths of kilometers (miles).
  • The trip record will be erased when:
    • The power supply is interrupted (blown fuse or the battery is disconnected).
    • The vehicle is driven over 9999.9 km (mile).

Engine Coolant Temperature Gauge

Displays the engine coolant temperature.

The blue gauge indicates that the engine coolant temperature is low, and the red gauge indicates that the engine coolant temperature is high and overheating.

Instrument Cluster and Display

CAUTION If the high engine coolant temperature warning light (red) flashes, there is a possibility of overheating. Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

NOTE

  • If the engine coolant temperature is high or the engine is hot, the engine output may be limited.
  • The temperature unit (Centigrade/ Fahrenheit) of the engine coolant gauge display changes in conjunction with the temperature unit of the outside temperature display.
  • During normal driving, the engine coolant temperature stabilizes at 100 ºC (210 ºF) or less, and the gauge indicates a range lower than 100 ºC (210 ºF).

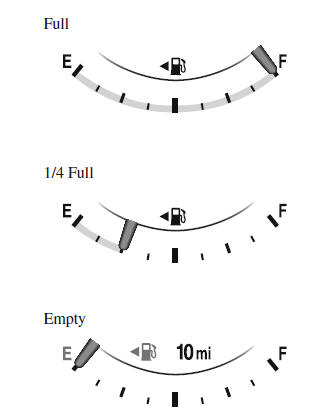

Fuel Gauge

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

Instrument Cluster and Display

If the fuel level is low, ( ) and ( ) turn an amber color. Refuel as soon as possible.

NOTE

  • After refueling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

  • The direction of the arrow ( ) indicates that the fuel-filler lid is on the left side of the vehicle.

Dashboard Illumination

(Without auto-light control) When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

(With auto-light control) When the lights are turned on with the ignition switched ON, the brightness of the dashboard illumination is dimmed.

However, when the light sensor detects that the surrounding area is bright such as when the lights are turned on in the daytime, the dashboard illumination does not dim.

NOTE

  • (With auto-light control) When the ignition is switched ON in the early evening or at dusk, the dashboard illumination is dimmed for several seconds until the light sensor detects the brightness of the surrounding area, however, the dimming may cancel after the brightness is detected.

  • When the lights are turned on, the lights-on indicator light in the instrument cluster turns on.

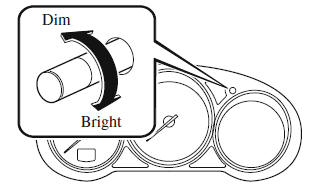

The brightness of the instrument cluster and dashboard illuminations can be adjusted by rotating the knob.

  • The brightness decreases by rotating the knob to the left. A beep sound will be heard when the knob has been rotated to the maximum dim position.

  • The brightness increases by rotating the knob to the right.

Instrument Cluster and Display

Function for canceling illumination dimmer

The illumination dimmer can be canceled by rotating the dashboard illumination knob to the right until a beep sound is heard while the instrument cluster is dimmed with the ignition switched ON. If the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer.

NOTE

  • The illumination dimmer can be canceled by pressing the dashboard illumination knob.
  • When the illumination dimmer is canceled, the instrument cluster cannot be dimmed even if the lights are turned on.
  • When the illumination dimmer is canceled, the screen in the center display switches to constant display of the daytime screen.

Outside Temperature Display

When the ignition is switched ON, the outside temperature is displayed

NOTE

  • Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:
    • Significantly cold or hot temperatures.
    • Sudden changes in outside temperature.
    • The vehicle is parked.
    • The vehicle is driven at low speeds.

Changing the Temperature Unit of the Outside Temperature Display

The outside temperature unit can be switched between Celsius and Fahrenheit.

Settings can be changed by operating the center display screen.

NOTE When the temperature unit indicated in the outside temperature display is changed, the temperature unit indicated in the engine coolant gauge display changes in conjunction with it.

Distance-to-empty

This displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

NOTE

  • Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refueling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.
  • The display will not change unless you add more than approximately 9 L (2.3 US gal, 1.9 Imp gal) of fuel.
  • The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.
  • If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery cables are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Average Fuel Economy

The average fuel economy is calculated every minute from the total traveled distance on the trip meter and the total fuel consumption, and the average fuel economy for either TRIP A or TRIP B is displayed

The average fuel economy and trip meters can be reset by pressing the INFO switch for 1.5 seconds or more while in each mode. After the data is cleared, the fuel consumption is recalculated and the - - - km/L (- - - mpg) for the 1 minute prior to it being displayed is indicated.

Current Fuel Economy

This displays the current fuel economy by calculating the amount of fuel consumption and the distance traveled.

Instrument Cluster and Display

NOTE Indicates the 0 position when the vehicle speed is about 5 km/h (3 mph) or slower.

Maintenance Monitor

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

  • Scheduled Maintenance
  • Tire Rotation
  • Oil Change

When the remaining days to the maintenance period is 15 days or less, or the remaining distance is 1,000 km (600 miles) or shorter, a message is indicated when the ignition is switched ON.

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Blind Spot Monitoring (BSM) Display

Displays the system status.

Instrument Cluster and Display

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display

Displays the system status.

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Display

Displays the currently set system status.

Distance Recognition Support System (DRSS) Display

Displays the distance between your vehicle and the vehicle ahead.

Cruise Control Set Vehicle Speed Display

The vehicle speed preset using the cruise control is displayed.

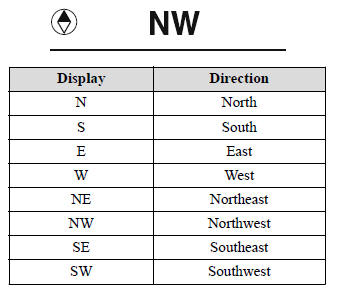

Compass Display

The direction the vehicle is moving is displayed in one of eight directions while the vehicle is being driven.

Instrument Cluster and Display

Warning (Display Indication)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.

For messages not indicating a symbol, follow the instructions indicated in the multi-information display.

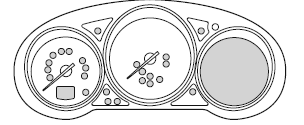

Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Instrument Cluster

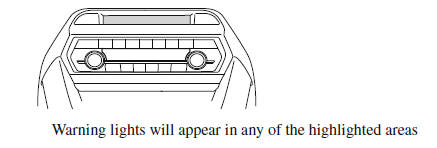

Center of Dashboard

Instrument Cluster and Display

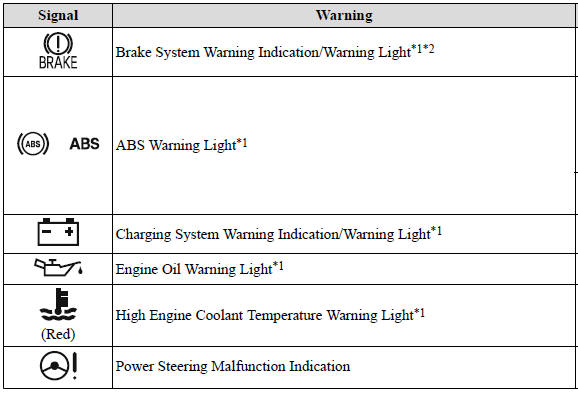

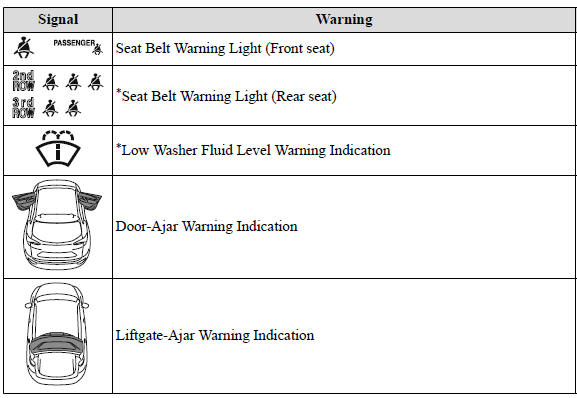

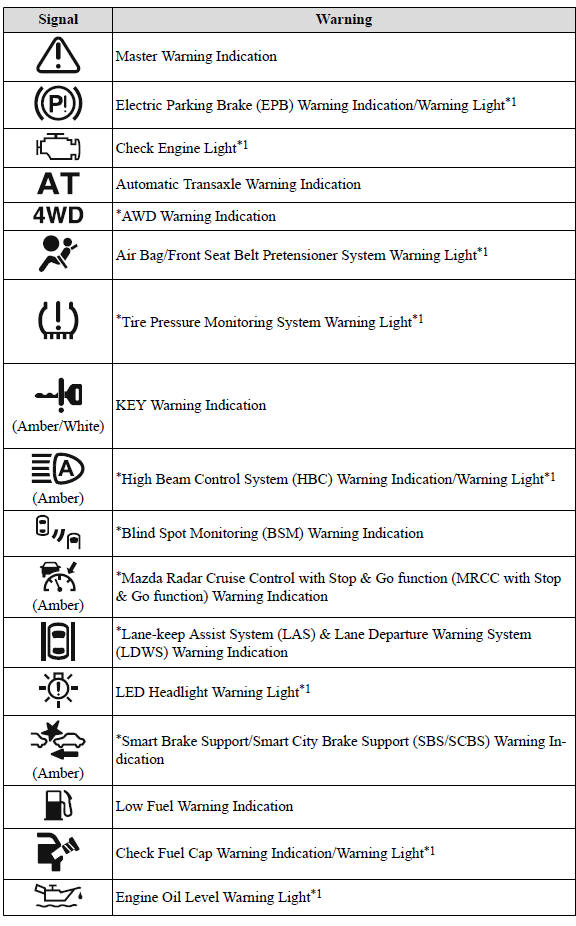

Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction

Instrument Cluster and Display

Instrument Cluster and Display

Instrument Cluster and Display

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

*2 The light turns on continuously when the parking brake is applied.

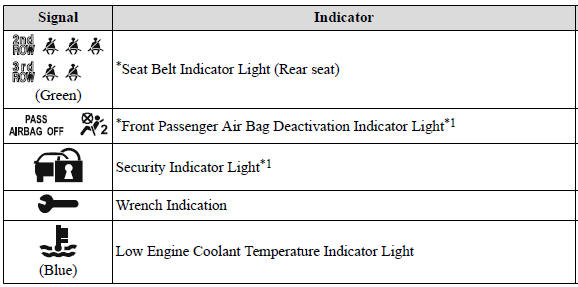

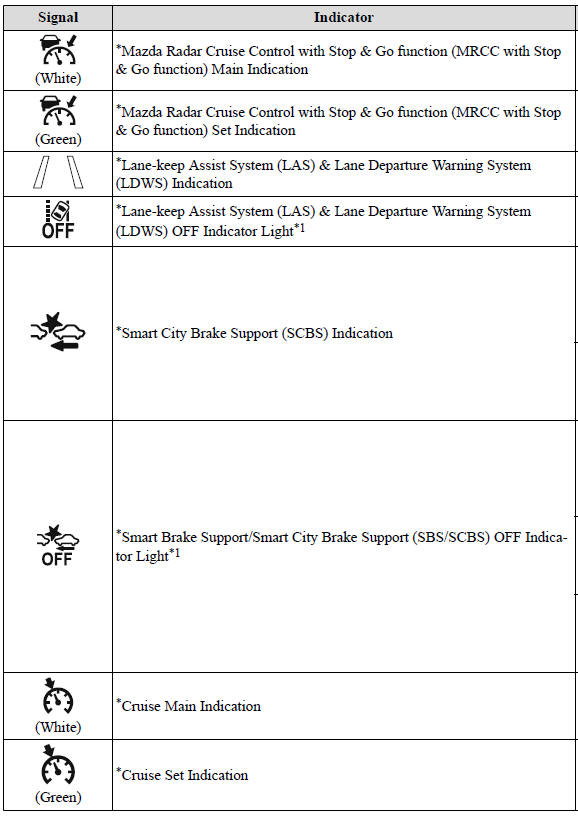

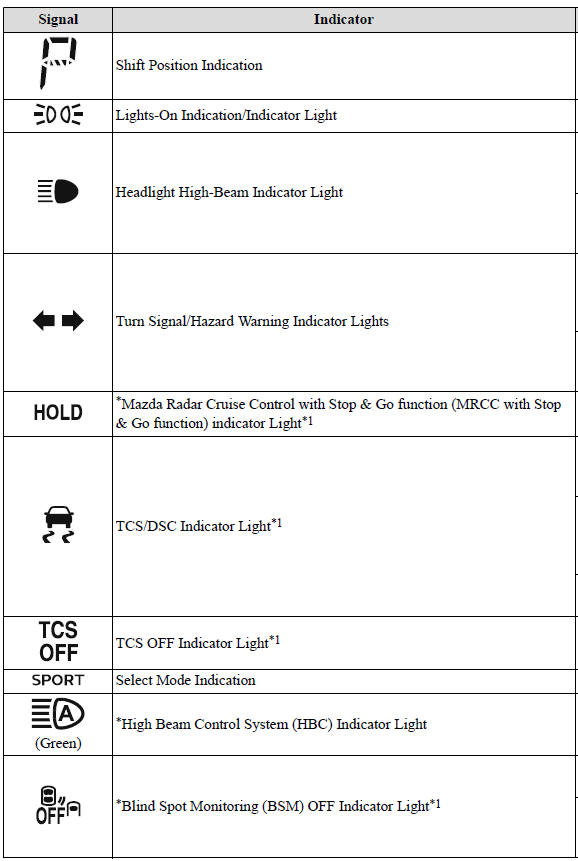

Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

Instrument Cluster and Display

Instrument Cluster and Display

Instrument Cluster and Display

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

Wrench Indicator Light

The wrench indication is displayed under the following conditions.

  • When the preset maintenance period has arrived.
  • When the engine oil replacement period has arrived.

NOTE

  • The wrench indication may display earlier than the preset period depending on vehicle usage conditions.
  • Whenever the engine oil is replaced, a reset of the vehicle engine control unit necessary.

Low Engine Coolant Temperature Indicator Light (Blue)

The light illuminates continuously when the engine coolant temperature is low and turns off after the engine is warm.

    Instrument Cluster (Type A)

    Instrument Cluster (Type C)
