Mazda CX-9 Owners Manual: Message Indicated on Display

If a message is displayed in the center display, take appropriate action (in a calm manner) according to the displayed message.

Warning/Indicator Lights and Warning Sounds

Stop Vehicle in Safe Place Immediately

If the following messages are displayed in the center display , a vehicle system may be malfunctioning. Stop the vehicle in a safe place and contact an Authorized Mazda Dealer.

Display

Indicated Condition

Displays if the engine coolant temperature has increased excessively.

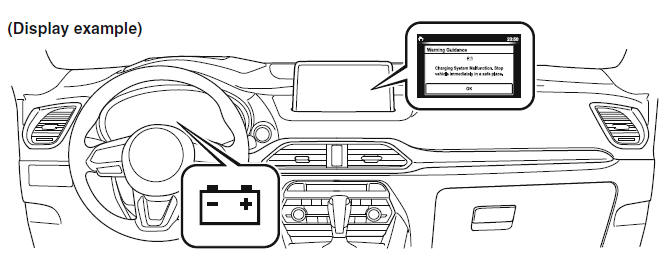

Displays if the charging system has a malfunction.

Verify Display Content

Displays in the following cases:

Display

Indicated Condition/Action to be taken

The following message is displayed when the temperature around the center display is high.

Lowering the temperature in the cabin or the temperature around the center display by avoiding direct sunlight is recommended.

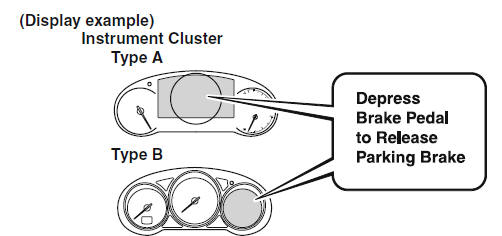

Message Indicated in Multi-information Display

If there is a notification from the vehicle, a message is displayed in the multi-information display. Check the information and take the necessary action.

Warning/Indicator Lights and Warning Sounds

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display, check the information regarding the warning light or symbol.

Display

Content

Action to be taken

Indicated when the push button start is pressed while the selector lever is not in the P position. Shift the selector lever to the P position.
Indicated when the push button start is pressed without depressing the brake pedal. Depress the brake pedal and press the push button start.
Indicates when the Electric Parking Brake (EPB) switch is operated without depressing the brake pedal. Operate the Electric Parking Brake (EPB) switch while depressing the brake pedal.
Indicated when the engine coolant temperature is high or the engine is hot, and the engine output is limited. Drive slowly and make sure that the indication turns off.

If the indication does not turn off, consult an Authorized Mazda Dealer.

    If a Warning Light Turns On or Flashes

    Warning Sound is Activated
