Mazda CX-9 Owners Manual: If a Warning Light Turns On or Flashes

If any warning light turns on/flashes, take appropriate action for each light. There is no problem if the light turns off, however if the light does not turn off or turns on/flashes again, consult an Authorized Mazda Dealer.

The details for some warnings can be viewed on the center display or multi-information display (Type A/Type B) in the instrument cluster.

Center display

1. If the warning light is turned on, select the icon on the home screen to display the Application screen.

2. Select "Vehicle Status Monitor".

3. Select "Warning Guidance" to display the current warnings.

4. Select the applicable warning to view the warning detail

Multi-information display (Type A/Type B)

1. Press the INFO switch on the steering switch to display the warning indication screen.

Stop Vehicle in Safe Place Immediately

If any of the following warning lights turns on, the system may have a malfunction. Stop the vehicle in a safe place immediately and contact an Authorized Mazda Dealer.

Signal

Warning

Brake System Warning Indication/Warning Light

This warning has the following functions:

Parking brake warning/Warning light inspection

The light illuminates when the parking brake is applied with the ignition switched to START or ON. It turns off when the parking brake is released.

When the light turns on

If the brake system warning light remains turned on even though the parking brake is released, the brake fluid may be low or there could be a problem with the brake system.

Park the vehicle in a safe place immediately and contact an Authorized Mazda Dealer.

When the light is flashing

The light flashes if the Electric Parking Brake (EPB) has a malfunction.

If the light remains flashing even if the Electric Parking Brake (EPB) switch is operated, consult an Authorized Mazda Dealer as soon as possible.

WARNING

Do not drive with the brake system warning light illuminated. Contact an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving with the brake system warning light illuminated is dangerous. It indicates that your brakes may not work at all or that they could completely fail at any time. If this light remains illuminated, after checking that the parking brake is fully released, have the brakes inspected immediately. CAUTION In addition, the effectiveness of the braking may diminish so you may need to depress the brake pedal more strongly than normal to stop the vehicle.

Electronic Brake Force Distribution System Warning

If the electronic brake force distribution control unit determines that some components are operating incorrectly, the control unit may illuminate the brake system warning light and the ABS warning light simultaneously. The problem is likely to be the electronic brake force distribution system.

WARNING

Do not drive with both the ABS warning light and brake warning light illuminated.

Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving when the brake system warning light and ABS warning light are illuminated simultaneously is dangerous.

When both lights are illuminated, the rear wheels could lock more quickly in an emergency stop than under normal circumstances.

Charging System Warning Indication/Warning Light

If the warning light illuminates while driving, it indicates a malfunction of the alternator or of the charging system.

Drive to the side of the road and park off the right-of-way. Consult an Authorized Mazda Dealer.

CAUTION Do not continue driving when the charging system warning light is illuminated because the engine could stop unexpectedly.

Engine Oil Warning Light

This warning light indicates low engine oil pressure.

CAUTION Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive engine damage.

If the light illuminates or the warning indication is displayed while driving:

1. Drive to the side of the road and park off the right-of-way on level ground.

2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil pan.

3. Inspect the engine oil level. If it's low, add the appropriate amount of engine oil while being careful not to overfill.

CAUTION Do not run the engine if the oil level is low. Otherwise, it could result in extensive engine damage.

4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil, stop the engine immediately and have your vehicle towed to an Authorized Mazda Dealer.

High Engine Coolant Temperature Warning Indication/Warning Light

The light flashes when the engine coolant temperature is extremely high, and illuminates when the engine coolant temperature increases further.

Handling Procedure

Flashing light

Drive slowly to reduce engine load until you can find a safe place to stop the vehicle and wait for the engine to cool down.

Illuminated light

This indicates the possibility of overheating. Park the vehicle in a safe place immediately and stop the engine.

CAUTION Do not drive the vehicle with the high engine coolant temperature warning light illuminated.

Otherwise, it could result in damage to the engine.

Power Steering Malfunction Indication

The message is displayed if the electric power steering has a malfunction.

If the message is displayed, stop the vehicle in a safe place and do not operate the steering wheel. There is no problem if the message in the display turns off after a while. Contact an Authorized Mazda Dealer if the message is displayed continuously.

NOTE

  • If the message is displayed, the power steering will not operate normally. In this case, the steering wheel can still be operated, however, the operation may feel heavy compared to normal, or the steering wheel could vibrate when turning.
  • Repeatedly jerking the steering wheel left and right while the vehicle is stopped or moving extremely slowly will cause the power steering system to go into protective mode which will make the steering feel heavy, but this does not indicate a problem.

    If this occurs, park the vehicle safely and wait several minutes for the system to return to normal.

Power Steering Malfunction Indicator Light

The light illuminates/flashes if the electric power steering has a malfunction.

If the light illuminates/flashes, stop the vehicle in a safe place and do not operate the steering wheel. There is no problem if the light turns off after a while. Contact an Authorized Mazda Dealer if the light illuminates/flashes continuously.

NOTE

  • If the indicator light illuminates/flashes, the power steering will not operate normally.

    If this happens, the steering wheel can still be operated, however, the operation may feel heavy compared to normal, or the steering wheel could vibrate when turning.

  • Repeatedly jerking the steering wheel left and right while the vehicle is stopped or moving extremely slowly will cause the power steering system to go into protective mode which will make the steering feel heavy, but this does not indicate a problem.

    If this occurs, park the vehicle safely and wait several minutes for the system to return to normal.

Contact Authorized Mazda Dealer and Have Vehicle Inspected

If any of the following warning lights or the indicator light turns on/flashes, the system may have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal

Warning

ABS Warning Light

If the ABS warning light stays on while you're driving, the ABS control unit has detected a system malfunction. If this occurs, your brakes will function normally as if the vehicle had no ABS.

Should this happen, consult an Authorized Mazda Dealer as soon as possible.

NOTE

  • When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS warning light may illuminate. If this occurs, it is the result of the weak battery and does not indicate an ABS malfunction.

    Recharge the battery.

  • The brake assist system does not operate while the ABS warning light is illuminated.

Master Warning Indication/ Warning Light

With Multi-information Display (Type A/Type B)

Displays when notification of the system malfunctions is required.

Check the message indicated in the display and consult an Authorized Mazda Dealer.

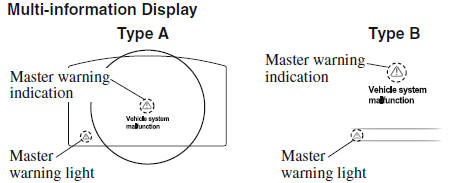

Warning/Indicator Lights and Warning Sounds

Indication in display and master warning light in instrument cluster are illuminated at same time.

This indicates a malfunction with the vehicle system. Check the message indicated in the display and consult an Authorized Mazda Dealer.

For details, refer to the explanations for the warning/indicator lights, in the warning/indicator lights section, which match the symbol in the upper part of the display.

If a message is not indicated in the display, operate the INFO switch to display the "Warning" screen.

With Multi-information Display (Type C)

The light illuminates continuously if any one of the following occurs. Consult an Authorized Mazda Dealer.

  • There is a malfunction in the battery management system.
  • There is a malfunction in the brake switch.

Electric Parking Brake (EPB) Warning Indication/ Warning Light

The warning light illuminates when the system has a malfunction. Have your vehicle inspected at an Authorized Mazda Dealer.

Check Engine Light

If this light illuminates while driving, the vehicle may have a problem. It is important to note the driving conditions when the light illuminated and consult an Authorized Mazda Dealer.

The check engine light may illuminate in the following cases:

  • The engine's electrical system has a problem.
  • The emission control system has a problem.
  • The fuel tank level being very low or approaching empty.
  • The fuel-filler cap is missing or not tightened securely.

If the check engine light remains on, or it flashes continuously , do not drive at high speeds and consult an Authorized Mazda Dealer as soon as possible.

WARNING

If the check engine light turns on, do not disconnect the battery cables. If the battery cables are disconnected and then reconnected, the engine could be damaged and catch on fire.

Automatic Transaxle Warning Indication/ Warning Light

The indication/light illuminates when the transaxle has a problem.

CAUTION

If the automatic transaxle warning indication/light illuminates, the transaxle has an electrical problem. Continuing to drive your Mazda in this condition could cause damage to your transaxle. Consult an Authorized Mazda Dealer as soon as possible.

AWD Warning Indication

"4WD system malfunction" is displayed

The indication is displayed under the following conditions. The system may have a malfunction.

Have the vehicle checked at an Authorized Mazda Dealer.

  • When there is a malfunction in the AWD system.
  • When there is a large difference between the tire size of the front and rear wheels.

"4WD system high-load" is displayed

The indication is displayed under the following conditions. Park the vehicle in a safe place and check that the warning indication light turns off, and then drive the vehicle. Contact an Authorized Mazda Dealer if the indication is continuously displayed.

  • When the differential oil temperature is excessively high.
  • When there is a large difference between the front and rear wheel rotation, such as when trying to remove the vehicle from mud.

TCS/DSC Indicator Light

If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer.

Air Bag/Front Seat Belt Pretensioner System Warning Light

A system malfunction is indicated if the warning light constantly flashes, constantly illuminates or does not illuminate at all when the ignition is switched ON. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate in an accident.

WARNING

Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda Dealer perform all servicing and repairs: Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could accidentally activate or become disabled causing serious injury or death.

Tire Pressure Monitoring System Warning Light

If the tire pressure monitoring system has a malfunction, the tire pressure warning light flashes. Have your vehicle checked by an Authorized Mazda Dealer as soon as possible.

WARNING

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden maneuvering and braking: If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an accident.

To determine if you have a slow leak or a flat, pull over to a safe position where you can check the visual condition of the tire and determine if you have enough air to proceed to a place where air may be added and the system monitored again by an Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have the problem taken care of as soon as possible before it develops into a more serious situation that could lead to tire failure and a dangerous accident.

KEY Warning Indication

"Keyless System Malfunction" is displayed

This message is displayed if the advanced keyless entry & push button start system has a problem.

Contact an Authorized Mazda Dealer.

CAUTION If the message is indicated, or the push button start indicator light (amber) flashes, the engine may not start. If the engine cannot be started, try starting it using the emergency operation for starting the engine, and have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.

"Ignition is On" is displayed

This message is displayed when the driver's door is opened without switching the ignition off.

"Key Not Detected" is displayed

This message is displayed when any of the following operations is performed with the key out of the operational range or placed in areas inside the cabin where it is difficult for the key to be detected.

  • The push button start is pressed with the ignition switched off
  • The ignition is switched on
  • All doors are closed without switching the ignition off

KEY Warning Light

If any malfunction occurs in the keyless entry system, it illuminates continuously.

CAUTION If the key warning indicator light illuminates or the push button start indicator light (amber) flashes, the engine may not start. If the engine cannot be started, try starting it using the emergency operation for starting the engine, and have the vehicle inspected at an Authorized Mazda Dealer as soon as possible.

High Beam Control System (HBC) Warning Indication/ Warning Light

The light remains turned on if there is a problem with the system. Have your vehicle inspected at an Authorized Mazda Dealer.

NOTE If the Forward Sensing Camera (FSC) field of view is impaired during bad weather conditions (such as rain, fog, and snow) and when the windshield is dirty, the warning indication/ warning light for the High Beam Control System (HBC) may display/turn on. However, this does not indicate a problem.

Blind Spot Monitoring (BSM) Warning Indication

The Warning indication turns on if there is any malfunction in the Blind Spot Monitoring (BSM). Have your vehicle inspected by an Authorized Mazda Dealer.

NOTE If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can detect, the system may pause. However, it does not indicate a malfunction.

Blind Spot Monitoring (BSM) OFF Indicator Light

A problem in the system may be indicated under the following conditions.

Have your vehicle inspected at an Authorized Mazda Dealer.

  • The light does not turn on when the ignition is switched ON.
  • The light remains on even when the Blind Spot Monitoring (BSM) system can be operated.
  • It turns on while driving the vehicle.

NOTE If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator light in the instrument cluster illuminates). However, it does not indicate a malfunction.

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) Warning Indication

The message is displayed when the system has a malfunction. Have your vehicle inspected at an Authorized Mazda Dealer.

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Warning Indication

The message is displayed when the system has a malfunction. Have your vehicle inspected at an Authorized Mazda Dealer.

The system does not operate when the warning message is displayed.

CAUTION

  • Always use tires for all wheels that are of the specified size, and the same manufacture, brand, and tread pattern. In addition, do not use tires with significantly different wear patterns on the same vehicle. If such improper tires are used, the system may not operate normally.
  • When an emergency spare tire is used, the system may not operate normally

LED Headlight Warning Light

This light illuminates if there is a malfunction in the LED headlight. Have your vehicle inspected by an Authorized Mazda Dealer.

Taking Action

Take the appropriate action and verify that the warning light turns off.

Signal

Warning

Action to be taken

Smart Brake Support/ Smart City Brake Support (SBS/SCBS) Warning Indication

The light turns on if the windshield or the radar sensor are dirty, or there is a malfunction in the system. Verify the reason why the warning light is illuminated on the center display.

If the reason why the warning light is illuminated is due to a dirty windshield, clean the windshield.

If the warning light is illuminated because of a dirty radar sensor, clean the front emblem.

For any other reasons, have the vehicle inspected at an Authorized Mazda Dealer.

Low Fuel Warning Indication/ Warning Light

The light turns on when the remaining fuel is about 9.0 L (2.3 US gal, 1.9 Imp gal).

NOTE The light illumination timing may vary because fuel inside the fuel tank moves around according to the driving conditions and the vehicle posture.

Add fuel.

Check Fuel Cap Warning Indication/Warning Light

If the check fuel cap warning light illuminates while driving, the fuel-filler cap may not be installed properly. Stop the engine and reinstall the fuel-filler cap.

Engine Oil Level Warning Light

This warning light indicates that the engine oil level is around the MIN mark. Add 1 L (0.3 US gal, 0.2 Imp gal) of engine oil.

Seat Belt Warning Light (Front seat)

Except Mexico

The seat belt warning light turns on if the driver or front passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.

If the driver or front passenger's seat belt is unfastened (only when the front passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated.

NOTE

  • The warning light flashes for about 6 seconds if the driver's seat belt is not fastened when the ignition is switched ON.
  • To allow the front passenger occupant classification sensor to function properly, do not place and sit on an additional seat cushion on the front passenger's seat.

    The sensor may not function properly because the additional seat cushion could cause sensor interference.

  • If a small child is seated on the front passenger's seat, the warning light may not operate
Fasten the seat belts.

Seat Belt Warning Light (Front seat)

Mexico

The seat belt warning light turns on if the driver or front passenger's seat is occupied and the seat belt is not fastened with the ignition switched ON.

If the driver or front passenger's seat belt is unfastened (only when the front passenger's seat is occupied) and the vehicle is driven at a speed faster than about 20 km/h (12 mph), the warning light flashes. After a short time, the warning light stops flashing, but remains illuminated. If a seat belt remains unfastened, the warning light flashes again for a given period of time

NOTE

  • Placing heavy items on the front passenger's seat may cause the front passenger's seat belt warning function to operate depending on the weight of the item.
  • To allow the front passenger seat weight sensor to function properly, do not place and sit on an additional seat cushion on the front passenger's seat. The sensor may not function properly because the additional seat cushion could cause sensor interference.
  • If a small child is seated on the front passenger's seat, the warning light may not operate.
Fasten the seat belts.

Seat Belt Warning Light (Rear seat)

If the rear seat belts are not fastened while the ignition is switched ON , the driver and the passenger are alerted by the warning light.

The warning light operates even if there is no passenger on the rear seat.

NOTE If a rear seat belt is not fastened by a certain period of time after the engine has been started, the warning light turns off.

Fasten the seat belts.

Low Washer Fluid Level Warning Indication

This warning light indicates that little washer fluid remains. Add washer fluid.

Door-Ajar/Liftgate- Ajar Warning Indication/ Warning Light

The light turns on if any door/liftgate is not closed securely. Close the door/liftgate securely.

Tire Pressure Monitoring System Warning Light (Turns on)

Take the appropriate action and verify that the warning light turns off.

Warning

When the warning light illuminates, and the warning beep sound is heard when tire pressure is too low in one or more tires.

WARNING

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden maneuvering and braking: If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an accident.

To determine if you have a slow leak or a flat, pull over to a safe position where you can check the visual condition of the tire and determine if you have enough air to proceed to a place where air may be added and the system monitored again by an Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have the problem taken care of as soon as possible before it develops into a more serious situation that could lead to tire failure and a dangerous accident.



Action to be taken

Inspect the tires and adjust to the specified inflation pressure.

CAUTION When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged.

NOTE

  • Perform tire pressure adjustment when the tires are cold. Tire pressure will vary according to the tire temperature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the tire pressures. When pressure is adjusted on hot tires to the cold inflation pressure, the TPMS warning light/ beep may turn on after the tires cool and pressure drops below specification.

    Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient temperature, may turn off if the ambient temperature rises. In this case, it will also be necessary to adjust the tire air pressures. If the TPMS warning light illuminates due to a drop in tire air pressure, make sure to check and adjust the tire air pressures.

  • After adjusting the tire air pressures, it may require some time for the TPMS warning light to turn off. If the TPMS warning light remains illuminated, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10 minutes, and then verify that it turns off.
  • Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over time or you have a flat. However, when you find one low tire in a set of four-that is an indication of trouble; you should have someone drive the vehicle slowly forward so you can inspect any low tire for cuts and any metal objects sticking through tread or sidewall. Put a few drops of water in the valve stem to see if it bubbles indicating a bad valve. Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous ― take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.

If the warning light illuminates again even after the tire pressures are adjusted, there may be a tire puncture.

KEY Warning Indication/Warning Light

Take the appropriate action and verify that the warning light turns off.

Signal

Cause

Action to be taken

(White)
KEY Warning Indication

The key battery is dead. Replace the key battery.

(Red)
(Flashing)
KEY Warning Light

The key battery is dead. Replace the key battery.
The key is not within the operation range. Bring the key into the operation range.
The key is placed in areas inside the cabin where it is difficult for the key to be detected.
A key from another manufacturer similar to the key is in the operation range. Take the key from another manufacturer similar to the key out of the operation range.
Without the ignition switched off, the key is taken out of the cabin, and then all the doors are closed. Bring the key back into the cabin.
    Warning/Indicator Lights and Warning Sounds

    Message Indicated on Display

    See More:

    Mazda CX-9 Owners Manual > If Trouble Arises: When Liftgate Cannot be Opened
    When Liftgate Cannot be Opened If the battery is dead, the liftgate cannot be unlocked and opened. In this case, the liftgate can be unlocked by taking care of the dead battery situation. If the liftgate cannot be unlocked even if the dead battery situation has been resolved, the electrical system m ...

    Mazda CX-9 Owners Manual

    © 2023 Copyright www.mcx9.net
    0.0058
