Mazda CX-9 Owners Manual: Door Locks

WARNING

Always take all children and pets with you or leave a responsible person with them: Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures inside a vehicle can become high enough to cause brain damage or even death.

Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them: Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed.

Keep all doors locked when driving: Unlocked doors in a moving vehicle are dangerous. Passengers can fall out if a door is accidentally opened and can more easily be thrown out in an accident.

Always close all the windows and moonroof, lock the doors and the liftgate and take the key with you when leaving your vehicle unattended: Leaving your vehicle unlocked is dangerous as children could lock themselves in a hot vehicle, which could result in death. Also, a vehicle left unlocked becomes an easy target for thieves and intruders.

After closing the doors and the liftgate, always verify that they are securely closed: Doors and the liftgate not securely closed are dangerous, if the vehicle is driven with a door and the liftgate not securely closed, the door and the liftgate could open unexpectedly resulting in an accident.

Always confirm the safety around the vehicle before opening a door and the liftgate: Suddenly opening a door and the liftgate is dangerous. A passing vehicle or a pedestrian could be hit and cause an accident.

CAUTION

  • Always confirm the conditions around the vehicle before opening/closing the doors and the liftgate and use caution during strong winds or when parked on an incline. Not being aware of the conditions around the vehicle is dangerous because fingers could get caught in the door and the liftgate or a passing pedestrian could be hit, resulting in an unexpected accident or injury.

NOTE

  • Always stop the engine and lock the doors. In addition, to prevent theft of valuables, do not leave them inside the cabin.
  • If the key is left in the following areas and you leave the vehicle, the doors may be locked depending on the radio wave conditions even if the key is left in the vehicle.
    • Around the dashboard
    • In the storage compartments such as the glove compartment or the center console
    • Next to a communication device such as a mobile phone
  • When the ignition is switched to ACC or ON, the vehicle lock-out prevention feature prevents you from locking yourself out of the vehicle.

    All doors and the liftgate will automatically unlock if they are locked using the power door locks with any door or the liftgate open.

    The vehicle lock-out prevention feature does not operate while the ignition is switched off.

    When all doors and the liftgate are locked using the power door lock with any door or the liftgate open, the closed doors and the liftgate are locked. After that, when all doors and the liftgate are closed, all doors and the liftgate are locked. However, if the key is inside the vehicle, all doors and the liftgate are automatically unlocked.

    (With the advanced keyless function) The beep sound is heard for about 10 seconds to notify the driver that the key has been left in the vehicle.

    (Without the advanced keyless function) The horn sound is heard twice to notify the driver that the key has been left in the vehicle.

  • (Door unlock (control) system with collision detection) This system automatically unlocks the doors and the liftgate in the event the vehicle is involved in an accident to allow passengers to get out of the vehicle immediately and prevent being trapped inside. While the ignition is switched ON and in the event the vehicle receives an impact strong enough to inflate the air bags, all the doors and the liftgate are automatically unlocked after about 6 seconds have elapsed from the time of the accident.

    The doors and the liftgate may not unlock depending on how an impact is applied, the force of the impact, and other conditions of the accident.

    If door-related systems or the battery is malfunctioning, the doors and the liftgate will not unlock.

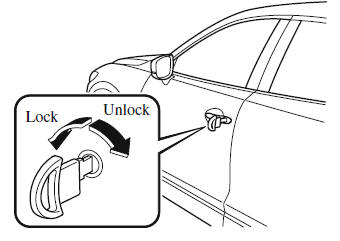

Locking, Unlocking with Auxiliary Key

Turn the auxiliary key toward the front to lock, toward the back to unlock.

To lock

All doors and the liftgate lock automatically when the driver's door is locked using the auxiliary key.

To unlock

The driver's door unlocks when the auxiliary key is turned briefly to the unlock position and then immediately returned to the center position.

All doors and the liftgate unlock when the driver's door is unlocked and the auxiliary key is held in the unlock position for one second or longer.

Doors and Locks

Locking, Unlocking with Request Switch (With the advanced keyless function)

All doors and the liftgate can be locked/ unlocked by pressing the request switch on the front doors while the key is being carried.

The request switch on the liftgate can only be used to lock all doors and the liftgate.

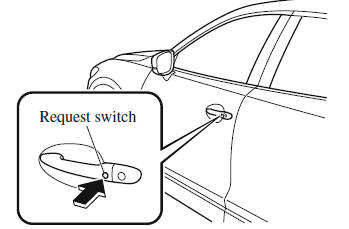

Front doors

Doors and Locks

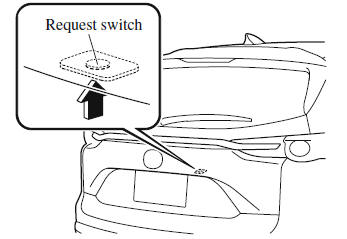

Liftgate (Lock only)

Doors and Locks

To lock

To lock the doors and the liftgate, press the request switch and the hazard warning lights will flash once.

A beep sound will be heard once.

To unlock

Driver's door request switch

To unlock the driver's door, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice.

To unlock all doors and the liftgate, press the request switch again within three seconds and two more beep sounds will be heard.

Front passenger door request switch

To unlock all doors and the liftgate, press the request switch. A beep sound will be heard twice and the hazard warning lights will flash twice.

NOTE

  • The system can be set to unlock all doors by performing a single operation.

    Use the following procedure to change the setting.

    1. Switch the ignition off and close all of the doors and the liftgate.

    2. Open the driver's door.

    3. Within 30 seconds of opening the driver's door, press and hold the UNLOCK button on the key for 5 seconds or longer (the sound of the doors locking/unlocking can be heard).

    After this, the system switches the setting of pressing the driver's request switch once or twice to unlock all doors and the liftgate each time the UNLOCK button is pressed (the sound of the doors locking/unlocking can be heard).

    4. The setting change is completed by doing any one of the following:

    • Switching the ignition to ACC or ON.
    • Closing the driver's door.
    • Opening the liftgate.
    • Not operating the key for ten seconds.
    • Pressing any button except the UNLOCK button on the key.
    • Pressing a request switch.
  • Confirm that all doors and the liftgate are securely locked.

    For the liftgate, move it without pressing the electric liftgate opener to verify that the liftgate has not been left ajar.

  • All doors and the liftgate cannot be locked when any door or the liftgate is open.
  • It may require a few seconds for the doors to unlock after the request switch is pressed.
  • A beep sound is heard for confirmation when the doors and the liftgate are locked/unlocked using the request switch. If you prefer, the beep sound can be turned off.

    The volume of the beep sound can also be changed. Use the following procedure to change the setting.

    1. Switch the ignition off and close all of the doors and the liftgate.

    2. Open the driver's door.

    3. Within 30 seconds of opening the driver's door, press and hold the LOCK button on the key for 5 seconds or longer (All of the doors and the liftgate are locked and unlocked when the LOCK button on the key is pressed and held for 5 seconds.).

    The beep sound activates at the currently set volume. The setting changes each time the LOCK button on the key is pressed and the beep sound activates at the set volume. (If the beep sound has been set to not activate, it will not activate.) 4. The setting change is completed by doing any one of the following:

    • Switching the ignition to ACC or ON.
    • Closing the driver's door.
    • Opening the liftgate.
    • Not operating the key for ten seconds.
    • Pressing any button except the LOCK button on the key.
    • Pressing a request switch.
  • (With theft-deterrent system) The hazard warning lights flash when the theft-deterrent system is armed or turned off.
  • The setting can be changed so that the doors and the liftgate are locked automatically without pressing the request switch.

    (Walk-away auto lock function) A beep sound is heard when all doors and the liftgate are closed while the advanced key is being carried. All doors and the liftgate are locked automatically after about three seconds when the advanced key is out of the operational range. Also, the hazard warning lights flash once. (Even if the driver is in the operational range, all doors and the liftgate are locked automatically after about 30 seconds.) If you are out of the operational range before the doors and the liftgate are completely closed or another key is left in the vehicle, the walk-away auto lock function will not work. Always make sure that all doors and the liftgate are closed and locked before leaving the vehicle. The walk-away auto lock function does not close the power windows.

  • (Auto re-lock function) After unlocking with the request switch, all doors and the liftgate will automatically lock if any of the following operations are not performed within about 60 seconds. If your vehicle has a theft-deterrent system, the hazard warning lights will flash for confirmation.

    The time required for the doors to lock automatically can be changed.

    • Opening a door or the liftgate.
    • Switching the ignition to any position other than off.

Locking, Unlocking with Transmitter

All doors and the liftgate can be locked/ unlocked by operating the keyless entry system transmitter, refer to Keyless Entry System.

Locking, Unlocking with Door-Lock Switch

All doors and the liftgate lock automatically when the lock side is pressed. They unlock when the unlock side is pressed.

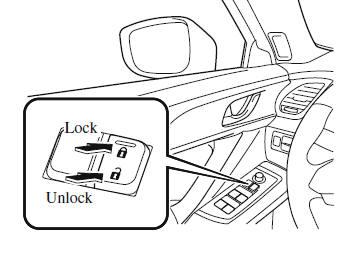

Driver's door

Doors and Locks

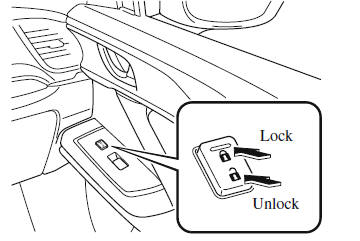

Front passenger's door

Doors and Locks

To lock all the doors and the liftgate from an open front door, press the lock side of the door lock switch and then close the door.

NOTE When locking the doors this way, be careful not to leave the key inside the vehicle.

Auto Lock/Unlock Function

WARNING

Do not pull the inner handle on a front door: Pulling the inner handle on a front door while the vehicle is moving is dangerous.

Passengers can fall out of the vehicle if the door opens accidentally , which could result in death or serious injury.

  • When the vehicle speed exceeds 20 km/h (12 mph), all doors and the liftgate lock automatically.
  • When the ignition is switched off, all doors and the liftgate unlock automatically.

These functions can also be disabled so that they do not operate.

Auto lock/unlock function setting change using door-lock switch

The doors and the liftgate can be set to lock or unlock automatically by selecting any one of the functions from the following table and using the driver's door-lock switch on the interior door panel.

NOTE

  • Function number 3 in the following table is the factory setting for your vehicle.
  • There are only a total of six auto lock/ unlock settings available. Be sure to press the unlock side of the driver's door-lock switch the correct number of times according to the selected function number. If the switch is mistakenly pressed seven times, the procedure will be cancelled. If this occurs, start the procedure from the beginning.

Function number

Function*1

1 The auto door-lock function is disabled.
2 All the doors and the liftgate lock automatically when the vehicle speed is about 20 km/h (12 mph) or more.
3 (Factory Setting) All the doors and the liftgate lock automatically when the vehicle speed is about 20 km/h (12 mph) or more. All the doors and the liftgate unlock when the ignition is switched from ON to Off.
4 When the ignition is switched ON and the selector lever is shifted from park (P) to any other gear position, all the doors and the liftgate lock automatically.
5 When the ignition is switched ON and the selector lever is shifted from park (P) to any other gear position, all the doors and the liftgate lock automatically.

When the selector lever is shifted to park (P) while the ignition is switched ON, all the doors and the liftgate unlock automatically.

6 All the doors and the liftgate lock automatically when the vehicle speed is about 20 km/h (12 mph) or more.

When the selector lever is shifted to park (P) while the ignition is switched ON, all the doors and the liftgate unlock automatically.

*1 Other settings for the auto door lock function are available at an Authorized Mazda Dealer. For details consult an Authorized Mazda Dealer.

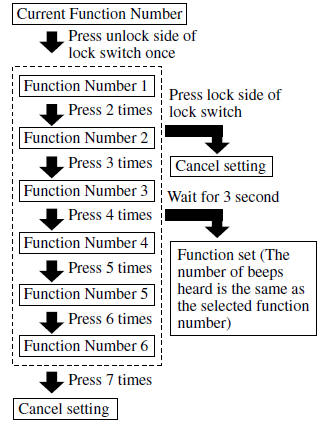

Settings can be changed using the following procedure.

1. Safely park the vehicle. All doors and the liftgate must remain closed.

2. Switch the ignition ON.

3. Press and hold the lock side of the driver's door-lock switch within 20 seconds of switching the ignition ON, and make sure a beep sound is heard about eight seconds afterwards.

4. Refer to the auto lock/unlock function setting table, determine the function number for the desired setting. Press the unlock side of the driver's door-lock switch the same number of times as the selected function number (Ex. If you select function 2, press the unlock side of the switch only 2 times).

5. Three seconds after the function setting has been changed, a beep sound will beep in the amount of the selected function number. (Ex. Function number 3 = 3 beep sounds)

Doors and Locks

NOTE

  • The doors and the liftgate cannot be locked or unlocked while the setting function is being performed.
  • The procedure can be cancelled by pressing the lock side of the driver's door-lock switch.

Locking, Unlocking with Door-Lock Knob

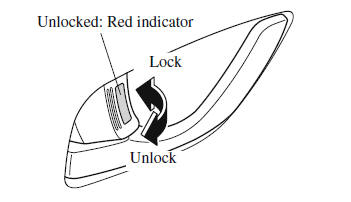

Operation from inside

To lock any door from the inside, press the door-lock knob.

To unlock, pull it outward.

This does not operate the other door locks.

Doors and Locks

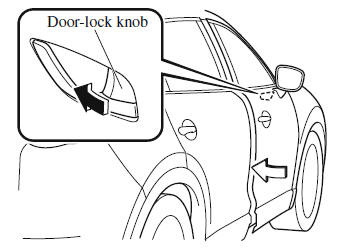

Operation from outside

To lock any door using its door-lock knob from the outside, press the door-lock knob to the lock position and close the door (holding the door handle in the open position is not required).

This does not operate the other door locks.

Doors and Locks

NOTE When locking the door this way:

  • Be careful not to leave the key inside the vehicle.
  • The doors cannot be locked using the driver's door lock knob if any door is open when the ignition is switched to ACC or ON.

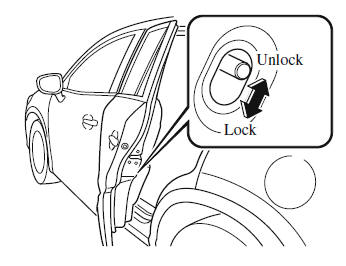

Rear Door Child Safety Locks

These locks are intended to help prevent children from accidentally opening the rear doors. Use them on both rear doors whenever a child rides in the rear seat of the vehicle.

If you slide the child safety lock to the lock position before closing that door, the door cannot be opened from the inside.

The door can only be opened by pulling the outside handle.

Doors and Locks

    Doors and Locks
