Mazda CX-9 Owners Manual: Supplemental Restraint System Components

Mazda CX-9 Owners Manual / Essential Safety Equipment / SRS Air Bags / Supplemental Restraint System Components

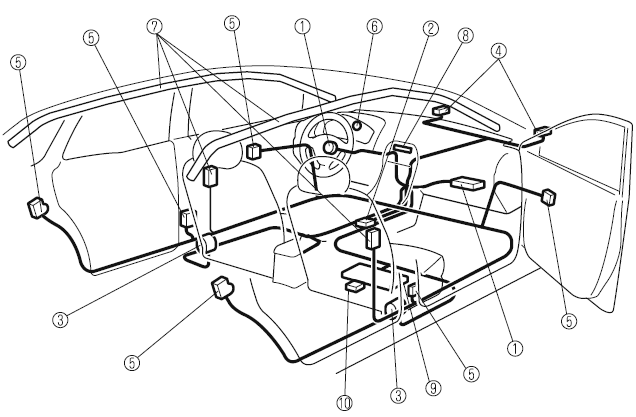

(With Front Passenger Occupant Classification System)

(With Front Passenger Occupant Classification System)

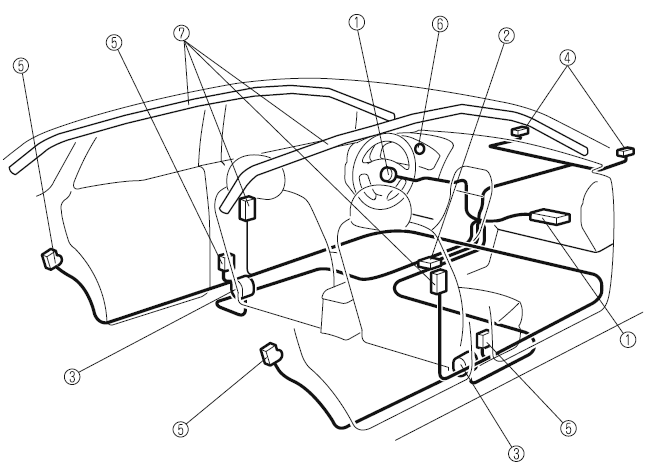

(Without Front Passenger Occupant Classification System)

(Without Front Passenger Occupant Classification System)

  1. Driver/Front passenger inflators and air bags
  2. Roll-over sensor, crash sensors, and diagnostic module (SAS unit)
  3. Seat belt pretensioners
  4. Front air bag sensors
  5. Side crash sensors
  6. Air bag/front seat belt pretensioner system warning light
  7. Side and curtain inflators and air bags
  8. Front passenger air bag deactivation indicator light
  9. Front passenger occupant classification sensor
  10. Front passenger occupant classification module
