Mazda CX-9 Owners Manual: Light Bulbs

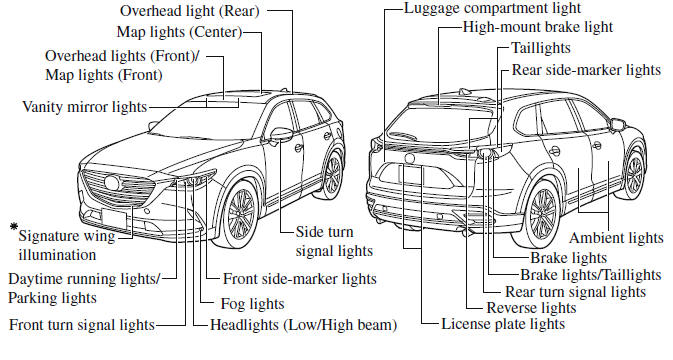

Type A (With Adaptive Front Lighting System (AFS) )

Owner Maintenance

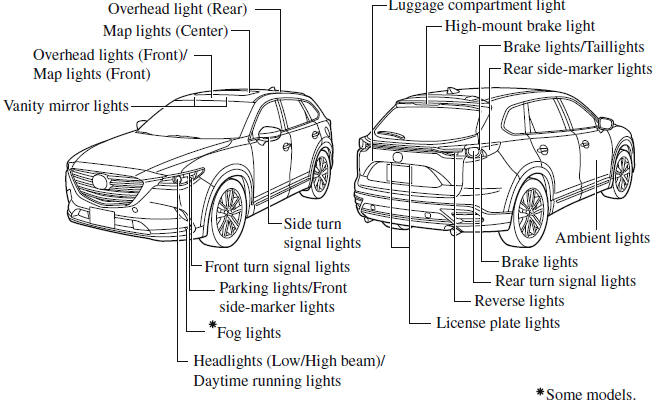

Type B (Without Adaptive Front Lighting System (AFS) )

Owner Maintenance

CAUTION When removing the lens or lamp unit using a flathead screwdriver, make sure that the flathead screwdriver does not contact the interior terminal. If the flathead screwdriver contacts the terminal, a short circuit may occur.

NOTE

  • To replace the bulb, contact an Authorized Mazda Dealer.
  • Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.

Replacing Exterior Light Bulbs

The exterior lights have either LEDs or normal bulbs.

LED type

  • Headlights (type A)
  • Headlights/Daytime running lights (type B)
  • Front turn signal lights (type A)
  • Daytime running lights/Parking lights (type A)
  • Front side-marker lights (type A)
  • Signature wing illumination (type A)
  • Fog lights
  • Brake lights
  • Taillights
  • High-mount brake light
  • Side turn signal lights
  • Rear side-marker lights
  • License plate lights

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary.

Bulb type

Front turn signal lights (type B), Parking lights/Front side-marker lights (type B)

NOTE When replacing a bulb for the front turn signal lights and parking lights/front side-marker lights, turn the steering wheel and change the direction in which the tires are pointed to the position where the bulb replacement can be done easily.

Turn the steering wheel after starting the engine and stop the engine after you finish turning the steering wheel.

1. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the right, and turn off engine. If you are changing the left bulb, turn the steering wheel to the left, and turn off engine.

2. Make sure the ignition is switched off, and the headlight switch is off.

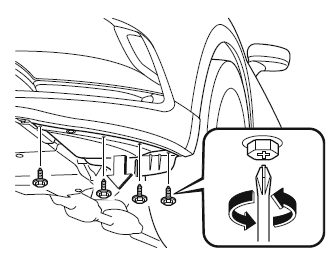

3. Turn the screw counterclockwise and remove it.

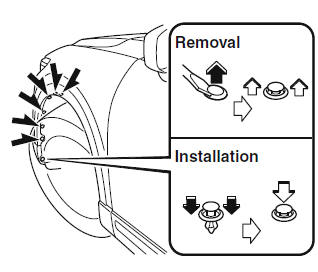

4. Pull the center of each plastic retainer and remove the retainers, and then partially peel back the mudguard.

Owner Maintenance

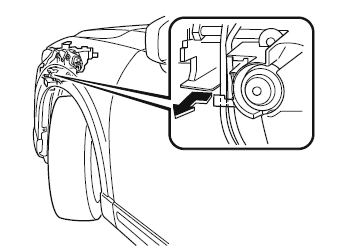

5. Disconnect the wiring harness by releasing the clamp.

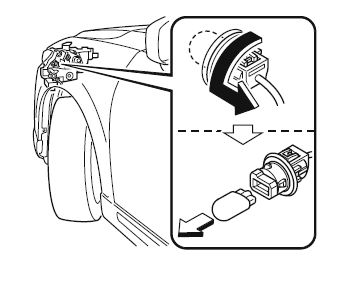

6. Turn the socket and bulb assembly counterclockwise and remove it.

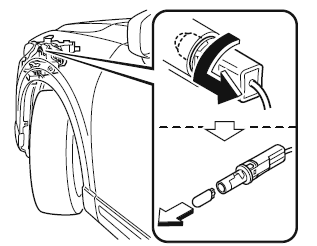

7. Disconnect the bulb from the socket.

Front turn signal lights

Parking lights/Front side-marker lights

8. Install the new bulb in the reverse order of the removal procedure.

NOTE There will be no problem with functionality with the wiring harness disconnected in Step 5 left disconnected.

Therefore, there is no need to connect the wiring harness.

Rear turn signal lights

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Remove the cover.

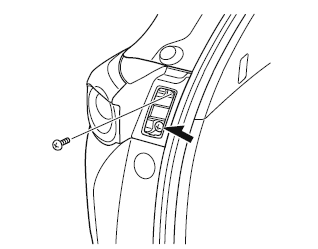

3. Turn the screws counterclockwise and remove them.

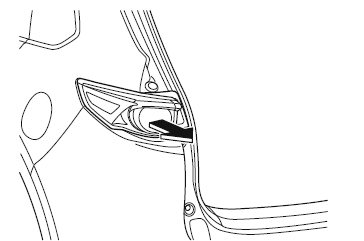

4. Pull the unit rearward to remove it.

5. Disconnect the wiring harness by releasing the clamp.

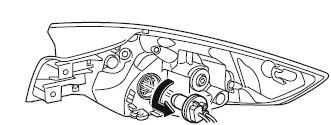

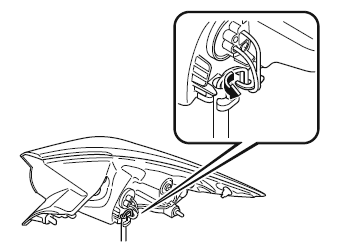

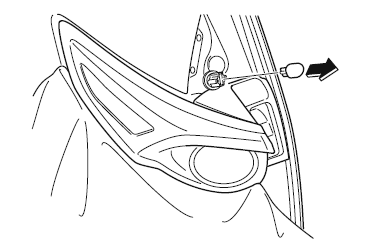

6. Turn the socket and bulb assembly counterclockwise and remove it.

7. Temporarily install the light unit with the socket pulled out of the top of the light unit.

Owner Maintenance

CAUTION

  • The wiring harness may be damaged when temporarily installing the light unit. When performing the procedure, observe the following points.

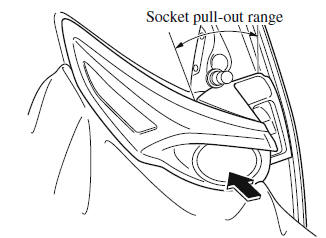

    • Pull out the socket from within the socket pull-out range shown in the figure.
    • Do not push the light unit into the vehicle with force.
  • When temporarily installing the light unit, cover the rear bumper light unit installation surface with a soft cloth.

    The rear bumper may be scratched or damaged if the light unit contacts it.

8. Disconnect the bulb from the socket.

9. Install the new bulb in the reverse order of the removal procedure.

Reverse lights

1. Make sure the ignition is switched off, and the headlight switch is off.

2. Remove the cover.

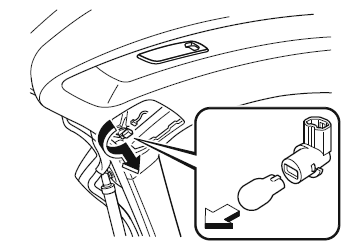

3. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.

4. Turn the socket and bulb assembly counterclockwise and remove it.

5. Disconnect the bulb from the socket.

6. Install the new bulb in the reverse order of the removal procedure.

Replacing Interior Light Bulbs

Overhead lights (Front)/Map lights (Front) (LED type), Overhead lights (Center)/Map lights (Center) (LED type), Overhead lights (Rear) (LED type), Vanity mirror lights (LED type), Ambient lights

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorized Mazda Dealer when the replacement is necessary

Overhead lights (Front)/Map lights (Front) (bulb type), Overhead lights (Center)/Map lights (Center) (bulb type), Overhead light (Rear) (bulb type), Vanity mirror lights (bulb type)

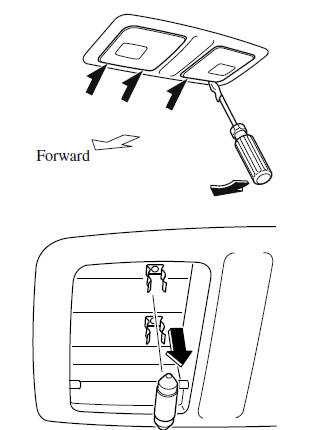

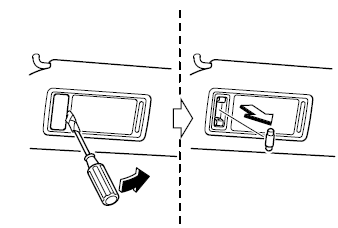

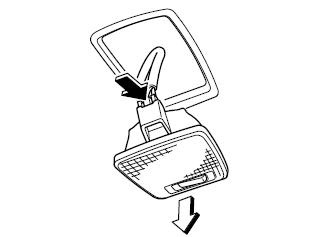

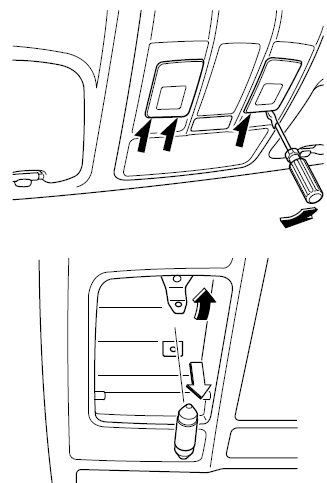

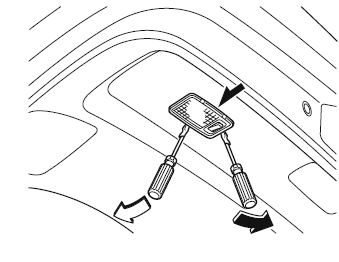

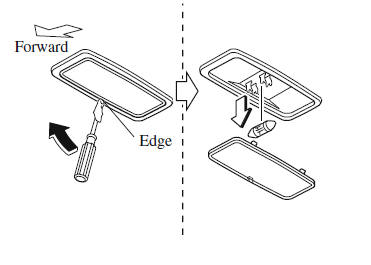

1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with the flathead screwdriver.

2. Disconnect the bulb by pulling it out.

Overhead lights (Front)/Map lights (Front)

Overhead lights (Center)/Map lights (Center)

Owner Maintenance

Overhead light (Rear)

Owner Maintenance

Vanity mirror lights

3. Install the new bulb in the reverse order of the removal procedure.

Luggage compartment light

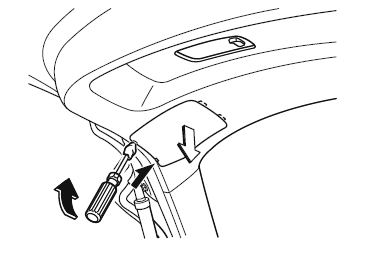

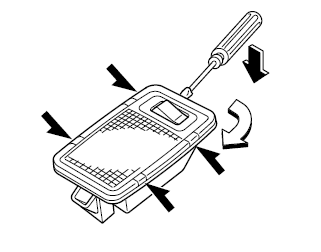

1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens and remove the lens unit by carefully prying on the edge of the lens unit with the flathead screwdriver.

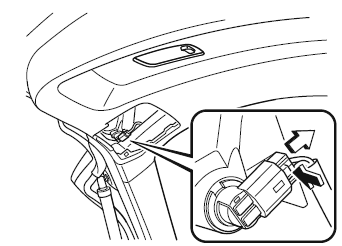

2. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.

CAUTION When replacing the bulb always disconnect the connector first.

Otherwise, electric and electronic devices could be shorted.

3. Insert the flathead screwdriver into the gap between the lens and the lens unit, and then slide the screwdriver to detach the lens.

4. Disconnect the bulb by pulling it out.

5. Install the new bulb in the reverse order of the removal procedure.

    Tires

    Fuses
